150TPH Stone Crusher Plant
Production capacity 150TPH for medium hard rocks, stones, minerals
The 150 TPH jaw & cone crushing plant are designed for medium scale stone quarrying plant,
aggregate plant, mineral beneficiation plant and so on.
The production capacity of 150 TPH is popular in the world for the contractors and final users.
Symons
series cone crusher with spring system can simplify the operation and promote efficiency. Symons
cone crusher manufactured by CLIMA Machinery is widely used to process hard minerals like iron ore,
granite rock, hard limestone, gold, manganese, concrete etc. Crusher China.

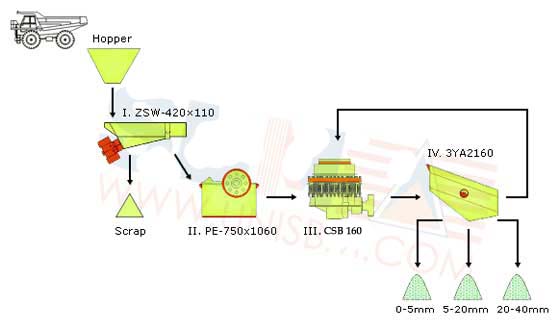

Flow chart of stone crushing plant:
Plant crushing stages: typical equipment and products
| NO?/td> | Equipment | Model | Motor(KW) | Number |
| Hopper | LC3000X4000 | 1 | ||
| I | Vibrating Feeder The major feeding equipment to feed raw materials into primary crushing. | ZSW-420×110 | 15 | 1 |
| II | Jaw crusher The heavy duty jaw crusher usually plays role as primary crushing machine. | PE-750×1060 | 110 | 1 |
| III | Cone crusher Symons cone crusher adopts spring system which greatly improve crushing efficiency. | CSB160 | 160 | 1 |
| ?/td> | Vibrating screen The major sieving equipment to seperate the raw crushed materials | 3YA2160 | 30 | 1 |
| Total Power (KW) | 315 | |||
